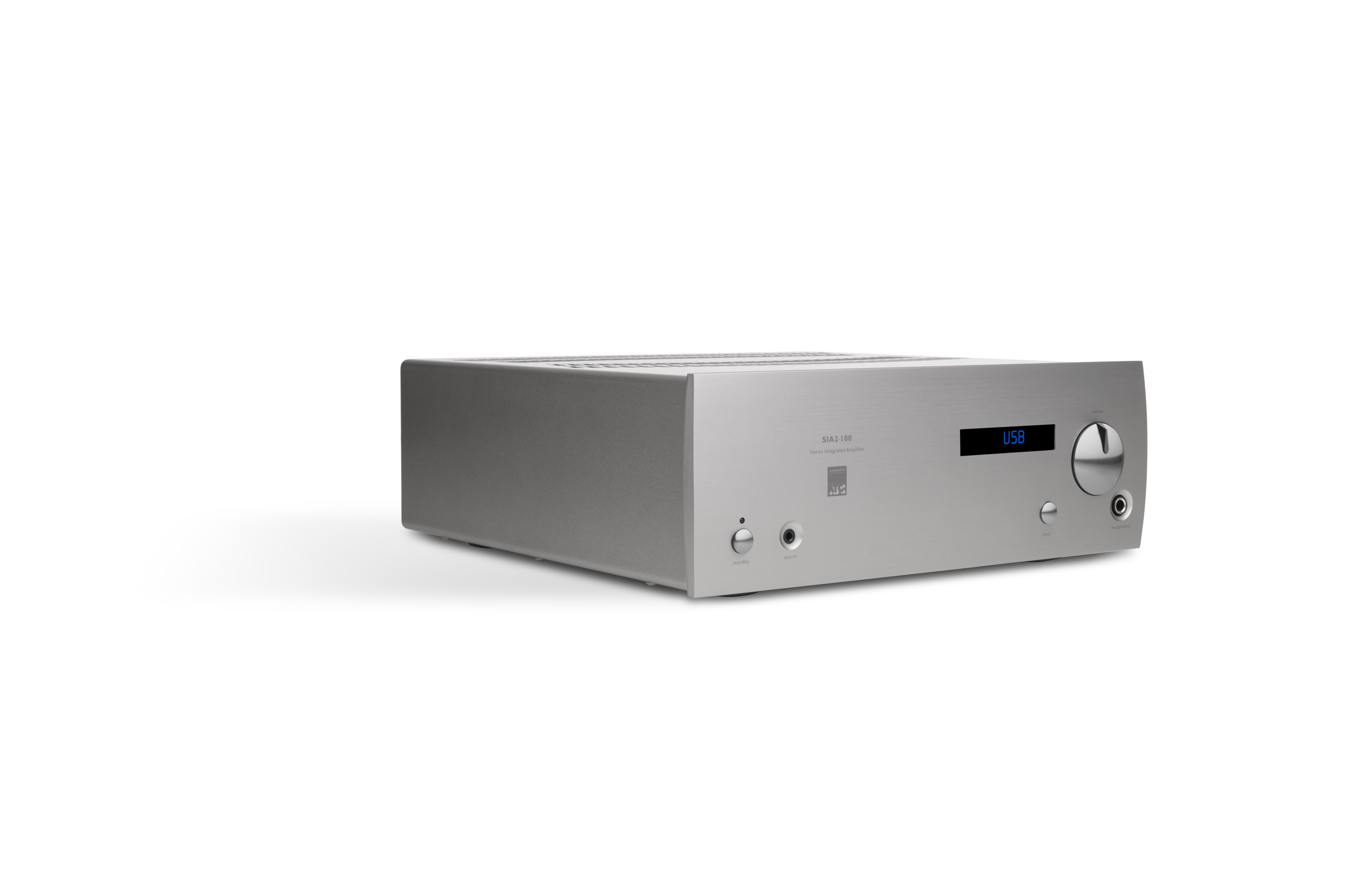

SIA2-100

Stereo Integrated Amp/DAC

Compact in size (2/3 width) yet offering high power output and exceptional resolution, this integrated amplifier with on-board DAC is ideally suited to driving ATC’s small & mid-size passive loudspeakers.  Understated styling makes it easy to integrate with partnering equipment while its small footprint occupies very little space in the home.

Key Features:

  • 2 x line level analogue inputs
  • 3 x digital inputs: USB, Coaxial, TOSLINK
  • Premium AKM 32-bit DAC
  • USB digital input supports up to 384kHz PCM and native DSD256*
  • ATC Discrete MOSFET Output Stage with 100W/Ch. Max Cont. Power
  • Headphone amp with discrete output stage
  • Handmade in England
  • 6 year warranty

*DSD256 support via PC only (up to DSD128 via Mac)

Specification

Integrated Amplifier
Max Output Power: 100W (Continuous Av. 8 Ohms, 1kHz, both channels driven)
Line Inputs: Two, stereo (one with additional front panel 3.5mm jack)
Line Input Sensitivity: 500mV
Input Impedance: 13k8 Ohms
Line Outputs: One, stereo
Overload Capacity: 13dB
Line Output Impedance: 10 Ohms
Frequency Response: < 2Hz – > 250Khz (@ -3dB)
Total Harmonic Distortion: 1kHz <0.0015% (-96dB), 10kHz <0.002% (-90dB)
Crosstalk: >80dB (10Hz – 20kHz)
S+N/N Ratio:  > 96dB (Wide band), > 108dB (DIN), > 112dB (IEC “A”)

Digital Inputs – Coaxial & Optical
Distortion: 1kHz <0.0015% (-96dB), 10kHz <0.005% (-86dB)
Frequency Response: 20Hz – 20kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
Word Lengths Supported: 16 – 24 Bit
Sample Rates Supported: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz*
*192kHz supported via coaxial input only

Digital Inputs – USB (PCM)
Distortion: 1kHz <0.0015% (-96dB ), 10kHz <0.005% (-86dB)
Frequency Response:
20Hz – 50kHz (+/- 0.1dB)
S+N/N Ratio:>100dB (IEC “A”)
Word Lengths Supported:
16 – 32 Bit
Sample Rates Supported:
32kHz, 44.1kHz, 48kHz, 88.2kHz, 96.0kHz
176.4kHz, 192.0kHz, 352.8kHz, 384.0kHz

Digital Inputs – USB (DSD)
Frequency Response: 10Hz – 50kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
DSD Rates Supported:
Windows – DSD64, DSD128, and DSD256
MAC OS – DSD64 and DSD128

Mains Power
Voltage: 115/230V AC 50/60Hz (internally selectable). 100v AC via dedicated
transformer. Mains voltage selection is to be carried out by ATC only.
Maximum Power Consumption:
400W

Physical
Dimensions (HxWxD): 113 x 315 x 315mm / 4.4 x 12.4 x 12.4″
(Dimensions exclude rear panel connectors)
Weight: 9.7kg / 24.39lbs
